IDH7000 Series Handheld Barcode Scanner

Product Introduction

Key Features

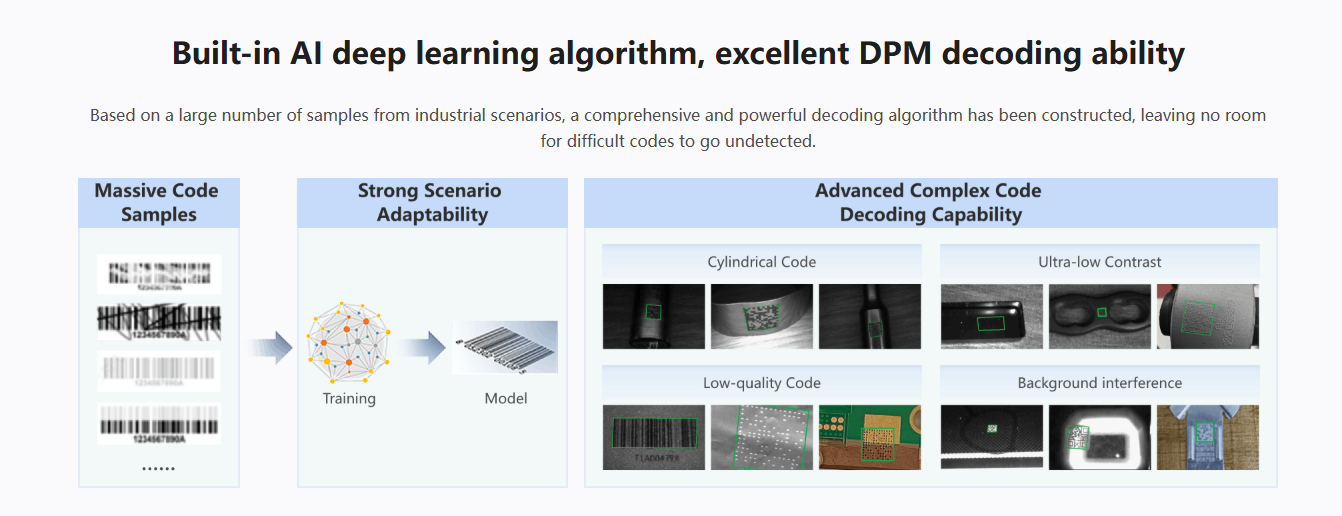

1. Incorporates proprietary high-performance barcode recognition algorithms with exceptional DPM reading capability.

2. Highly robust algorithm effectively handles dirty, damaged, or low-contrast barcodes.

3. Bluetooth 5.0 wireless technology eliminates cable constraints for efficient, lightweight operation.

4. Compatible with smart docking station for IDMVS integration, enabling parameter configuration and device management.

5. 3150 mAh battery capacity ensures extended runtime.

6. Supports IP65 protection and withstands multiple drops from 2.0 meters, delivering reliability in demanding industrial environments.

Ordering Model

MV-IDH7000B/10SR/07RN

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters






Dimensions and Model Specifications

Model	Model	MV-IDH7000B/10SR/07RN
Model	Name	1MP Wireless Industrial Handheld Coder
Performance	Barcode Category	One - dimensional codes: Code 39,Code 93,Code 128,GS1- Code128,CodaBar,EAN8,EAN13,ISBN,ISSN,ITF25,ITF14,UPCA,UPCE Two - dimensional codes: QR Code,Data Matrix,MicroQR,Aztec Stacked code: PDF417
	Minimum Barcode Precision	3 mil
	Sensor Type	CMOS
	Resolution	1280 × 800
	Depth of Field	Code 39(5 mil):30 mm ~ 200 mm Code 128(3 mil):55 mm ~ 110 mm Code 128(20 mil):56 mm ~ 660 mm Data Matrix(10 mil):20 mm ~ 220 mm QR Code(10 mil):20 mm ~ 220 mm QR Code(20 mil):10 mm ~ 450 mm
	Field of View Angle	31° (H) × 20° (V)
	Detection Angle	倾斜角度±60°,偏斜角度±60°,旋转角度360°
	Symbol Tolerance	20 %
Wireless Communication	Communication Mode	Bluetooth BT 5.0,BLE
Wireless Communication	Wireless Range	100m (in open air)
Electrical Characteristics	Battery Capacity	3150 mAh
	Charging Time
	Battery Life	13 h (intermittent scanning, 25 times once)
Structure	Focal Length	6.7 mm
	Ambient Light	0 ~ 100000 lux

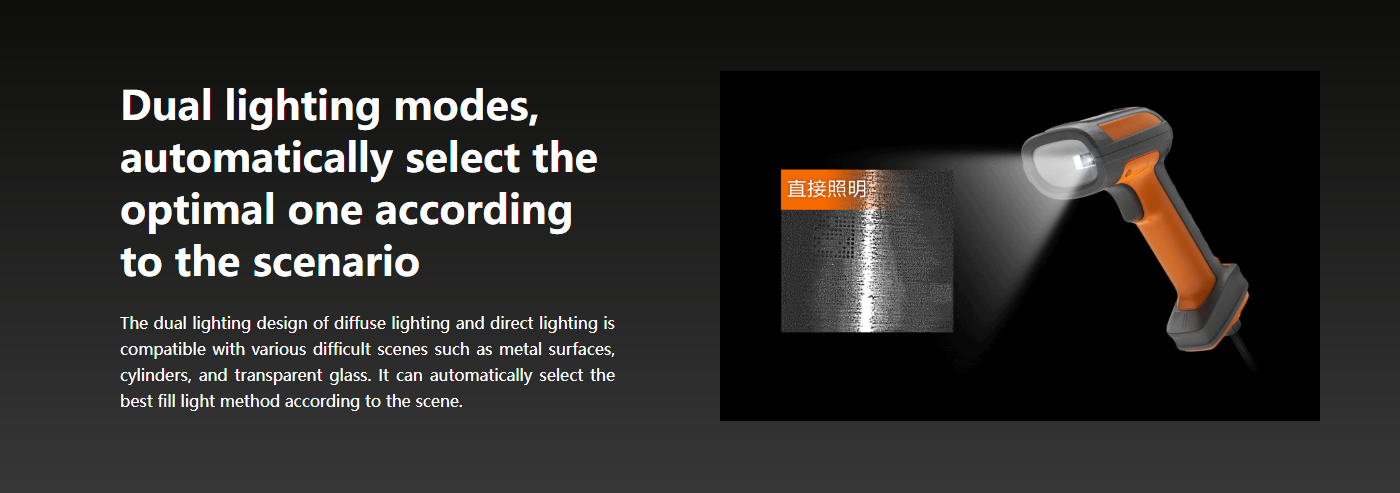

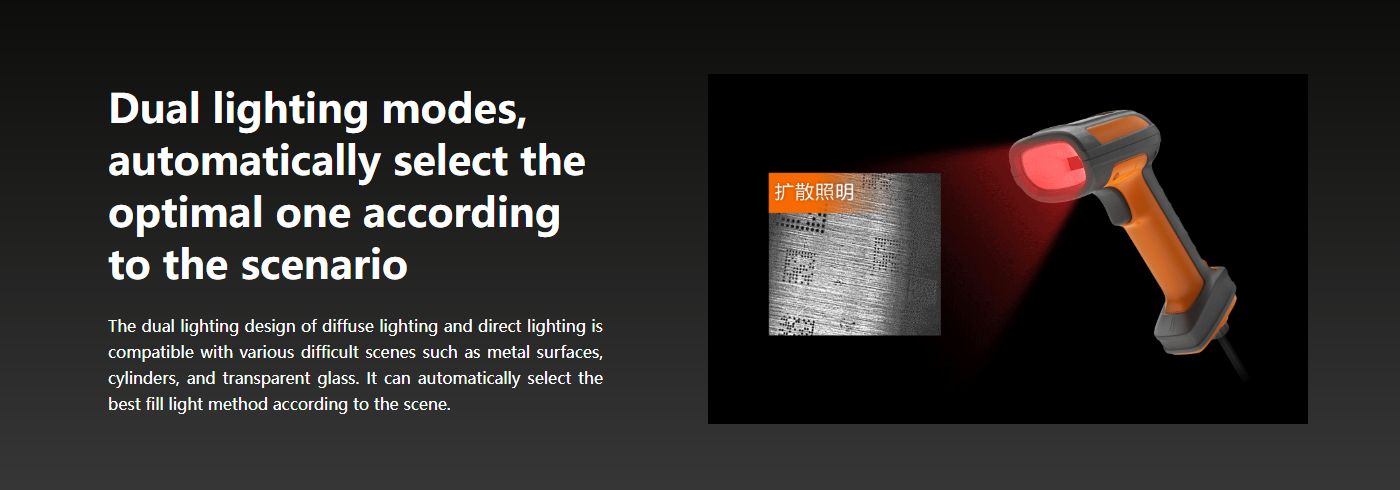

	Light Source	Supports 2 kinds of light sources: Diffused light source (red light), Direct light source (white light)
	Aimer	Cross Laser Aimer
	Prompt Mode	LED Indicator Light, Buzzer, Vibrator
	External Dimensions	73.4 mm × 104 mm × 215.2 mm
	Weight:	Approximately 410 g
	IP Protection Grade	IP65
	Temperature	Operating temperature: - 10 ~ 50°C; Storage temperature: - 20 ~ 60°C; Battery charging temperature: 0 ~ 40°C
	Humidity	20% ~ 95%RH；No Condensation
	Drop Height	2.0 m
Laser Performance	Laser Safety Class	Class 2 laser product
	Wavelength	650 nm
	Pulse Width	8 ms
	Maximum Power	1 mW
General Specifications	Software	IDMVS
General Specifications	Certification	CE,KC
底座	Communication Protocol
	Interface
	Power Supply
	Current Consumption
	Charging Time
	IP Protection Grade	IP40
	Humidity	20% ~ 95%，No Condensation
	Temperature	Operating temperature: - 10 ~ 50°C; Storage temperature: - 20 ~ 60°C; Battery charging temperature: 0 ~ 40°C
