IDH2000 Series Handheld Barcode Readers

Product Introduction

Features

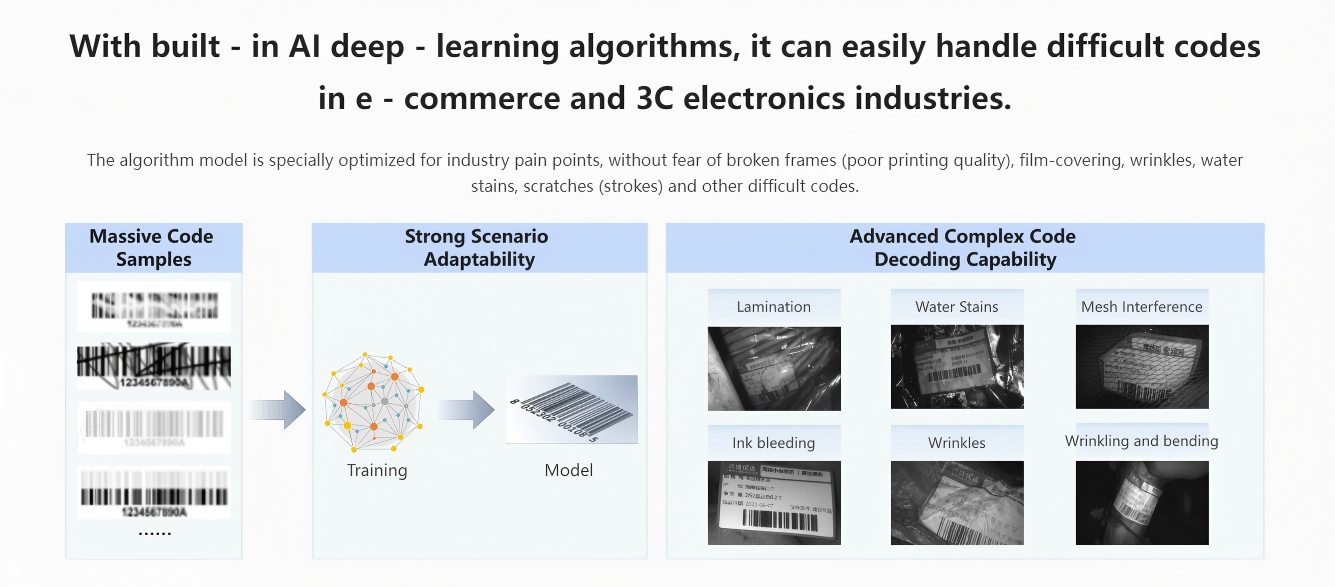

1. Utilizes proprietary high-performance barcode recognition algorithms to efficiently read challenging inkjet codes in light industry, enterprise, and retail environments

2. Highly robust algorithms effectively handle dirty, damaged, or low-contrast barcodes

3. Supports multiple output modes: USB-HID, USB-CDC, and RS-232

4. Features a detachable cable design for easy replacement.

5. Meets IP42 protection rating and withstands drops from 1.8 meters.

6. Provides status indication via buzzer and indicator lights.

Ordering Model

MV-IDH2000/03SR/03WN/U

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters



Dimensions and Model Parameters

Model	Model	MV - IDH2000/03SR/03WN/U
Model	Name	Enterprise - level USB Handheld Code Reader
Performance	Barcode Types	One - dimensional: Code 39,Code 93,Code 128,GS1- Code128,Coda Bar,EAN8,EAN13,ISBN,ISSN,ITF14,ITF25,UPCA,UPCE Two - dimensional: QR Code,Data Matrix,MicroQR,Aztec Stacked: PDF417
	Minimum Barcode Precision	4 mil
	Sensor Type	CMOS
	Resolution	640 × 480
	Depth of Field	EAN13(13 mil):30 ~ 240 mm Code 39(5 mil):50 ~ 100 mm Code 128(10 mil):30 ~ 240 mm Data Matrix(10 mil):40 ~ 130 mm QR Code(15 mil):15 ~ 205 mm
	Field of View Angle	42° (H) × 32° (V)
	Detection Angle	Tilt angle ±65°, Skew angle ±65°, Rotation angle 360°
	Symbol Contrast	20 %
	Communication Protocol	SmartSDK,USB(HID/CDC),Serial (RS-232)
Electrical Characteristics	Interface	USB2.0,USB3.0,RS-232
	Power Supply	5 VDC
	Current Consumption	0.9 A(Maximum Current); 0.5 A(Typical Current)
Structure	Focal Length	3.1 mm
	Ambient Illumination	0 ~ 100000 lux
	Light Source	White LED
	Aimer	Orange LED
	Prompt Mode	LED indicator light, buzzer, vibrator
	External Dimensions	66.5 mm × 94 mm × 169.5 mm
	Weight	Approximately 160 g
	IP Protection Grade	IP42
	Temperature	Operating temperature - 10 - 50°C; Storage temperature - 20 - 60°C
	Humidity	5% ~ 95%RH，no condensation
	Drop Height: Drop	1.8 m drop for 50 times; Roll: 0.5 m roll for 1000 times
Laser Performance	Laser Safety Class	Class 2 laser product
	Wavelength	650 nm
	Pulse Width	8 ms
	Maximum Power	1 mW
General Specifications	Software	IDMVS
General Specifications	Certification	CE,KC
