Functional Features

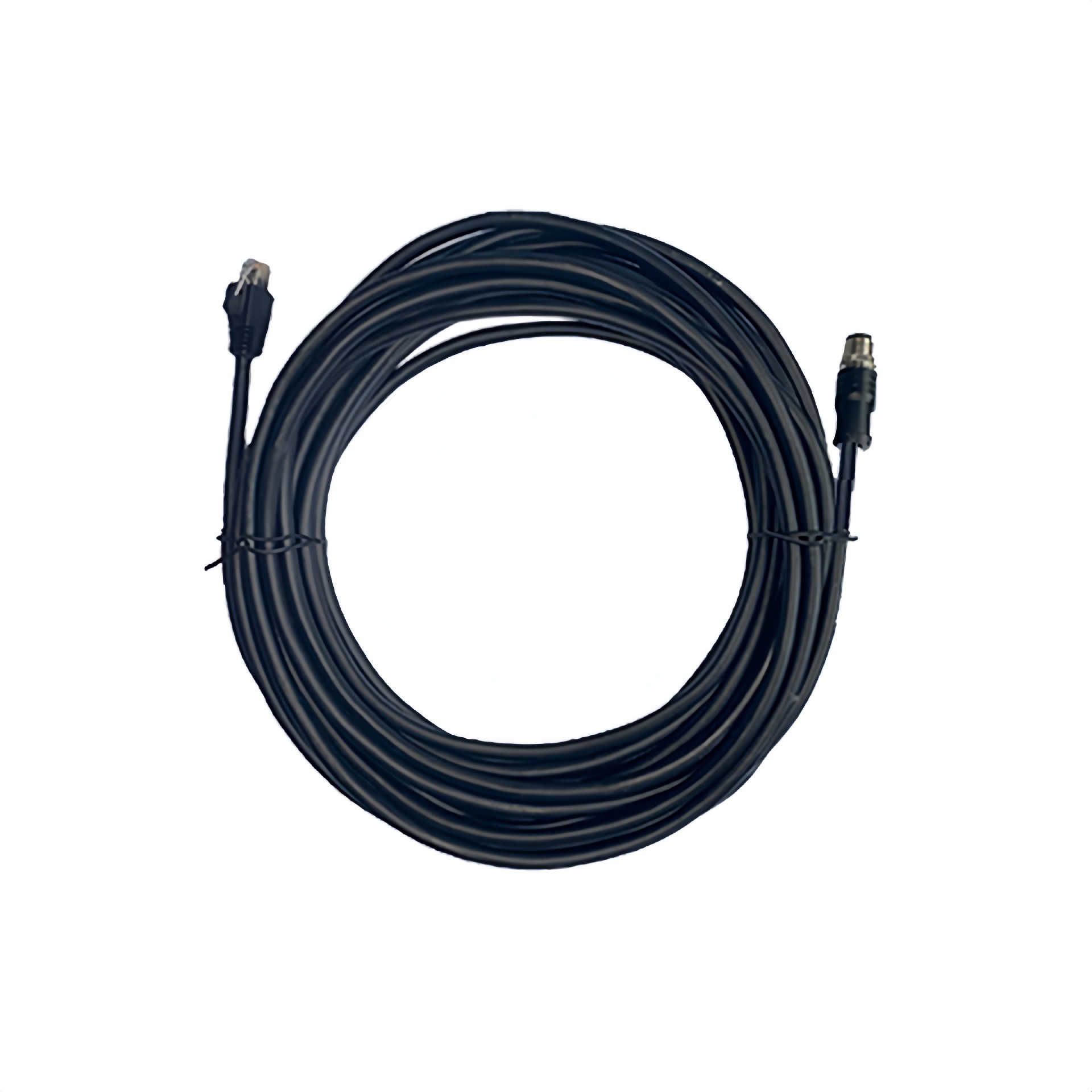

M12 standard Gigabit Ethernet cables are available for network data transmission, with multiple lengths offered.
Ordering Model
MV-IDA-E-M12A8pF-RJ45-ST-3m
*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.
外形尺寸
| Model | Model | MV-IDA-E-M12A8pF-RJ45-ST-3m |
| Name | Network Cable, Static, 3m, 8 - pin to RJ45 | |
| Physical Specifications | A - end Interface | M12 8-pin A-code male |
| B - end Interface | RJ45 | |
| Wire Harness Diameter | 6.6 mm | |
| Length | 3 m | |
| Wire Structure | 24#*4P | |
| Outer Layer Material | PVC | |
| Wire Color | Black | |
| Connector Durability | > 500 mating cycles | |
| Minimum Bending Radius | 79.2 mm | |
| Applicable Scenario | Static | |
| Electrical Specifications | Maximum Working Voltage | 30 VDC |
| Other Information | Operating Temperature | -20°C~ 75°C |
| Certification | RoHS,UL | |
| Packaging | Independent packaging bag |
