ID3000 Series Industrial Barcode Reader

Product Introduction

Features

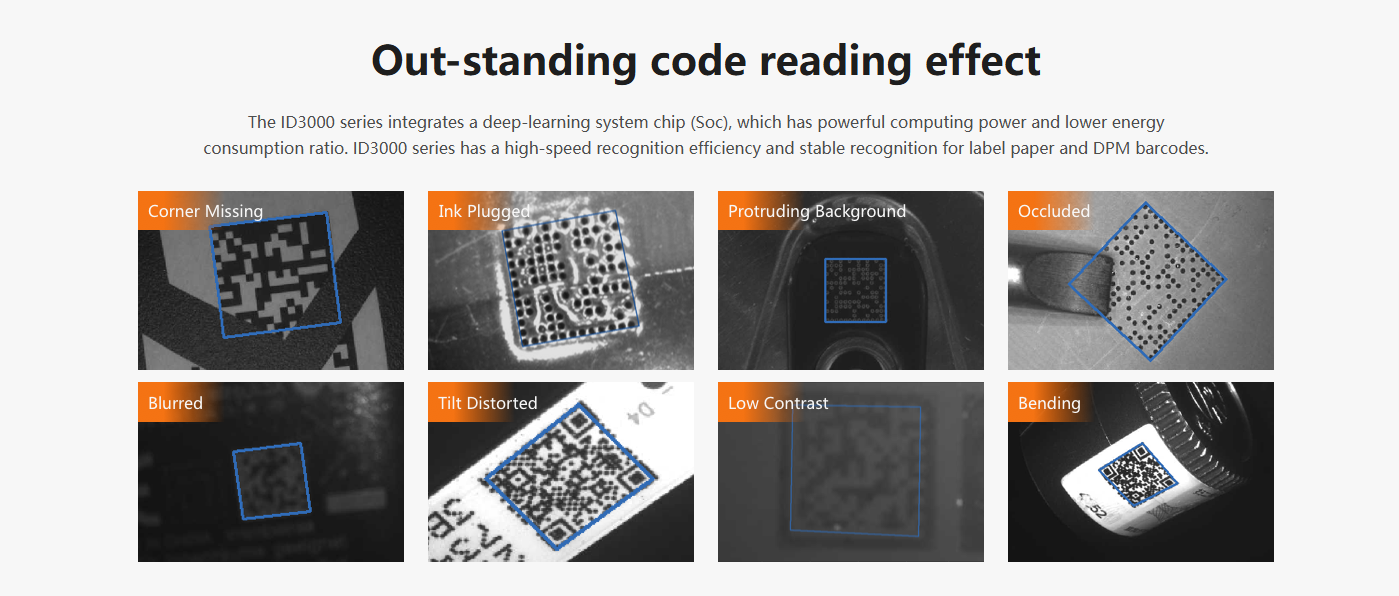

1. Built-in deep learning decoding algorithm adapts to diverse complex conditions with high robustness.

2. Single cable provides extensive I/O interfaces for multiple input/output signals.

3. 14 LED composite light sources support flexible grouping configurations.

4. Compatible with polarization functionality, enabling rapid switching between polarized and non-polarized modes.

5. Top ring indicator and dual-side waistline result indicators for quick operational status monitoring.

6. Built-in dual LED aiming devices facilitate installation alignment.

Ordering Model

MV-ID3013PM-06M-WBN

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters



Dimensions & Model Specifications


Model	Model	MV-ID3013PM-06M-WBN
Model	Name	6mm Lens 1.3MP Resolution Industrial Intelligent Barcode Reader (V2.0)
Performance	Barcode Types	One - dimensional codes: Code 39,Code 93,Code 128,CodaBar,EAN8,EAN13,UPCA,UPCE,ITF14,Matrix 2 of 5,Matrix 25,MSI,China Post,Code 11,Industrial 25 etc. Two - dimensional codes: QR Code,Data Matrix etc. Stacked codes: PDF417 etc.
	Maximum Processing Frame Rate	60 fps
	Maximum Reading Speed	84 codes per second
	Sensor Type	CMOS, global shutter
	Pixel Size	4 μm × 4 μm
	Sensor Size	1/2.7”
	Resolution	1280 × 1024
	Exposure Time	35 μs ~ 1 sec
	Gain	0 dB ~ 23 dB
	Black/Color	Black and white
	Communication Protocol	SmartSDK,TCP Client,Serial,FTP,TCP Server,Profinet,MELSEC,Ethernet/IP,ModBus, Fins,SLMP
Electrical Characteristics	Data Interface	Fast Ethernet(100 Mbit/s)
	Digital I/O	17 - pin M12 interface provides power and I/O, including 3 non - isolated inputs (Inline 0/1/2), 3 non - isolated outputs (LineOut 3/4/5), 1 RS - 232, supports triggering devices via top buttons.
	Power Supply	24 VDC
	Maximum Power Consumption	20 W@24 VDC (with white fill light enabled)
Structure	Focal Length	6 mm
	Lens Interface	M12-Mount, mechanical focus
	Lens Hood	Semi - polarized lens hood, transparent and fully polarized lens hoods optional
	Light Source	White light, red light/blue light/infrared light optional
	Indicators	Power indicator PWR, network indicator LNK, status indicator STS, result display indicators OK/NG
	Dimensions	65.2 mm × 65.2 mm × 47 mm
	Weight	Approximately 280 g
	IP Protection Rating	IP67 (when properly installed with the lens waterproof cover)
	Temperature	Operating temperature 0 - 50°C; Storage temperature - 30 - 70°C
	Humidity	20% ~ 95%，no condensation
General Specifications	Software	IDMVS
General Specifications	Certification	CE,RoHS,KC
