SC2000E Series Vision Sensors

Product Introduction

Functional Features

1. Embedded hardware platform enables high-speed image processing.

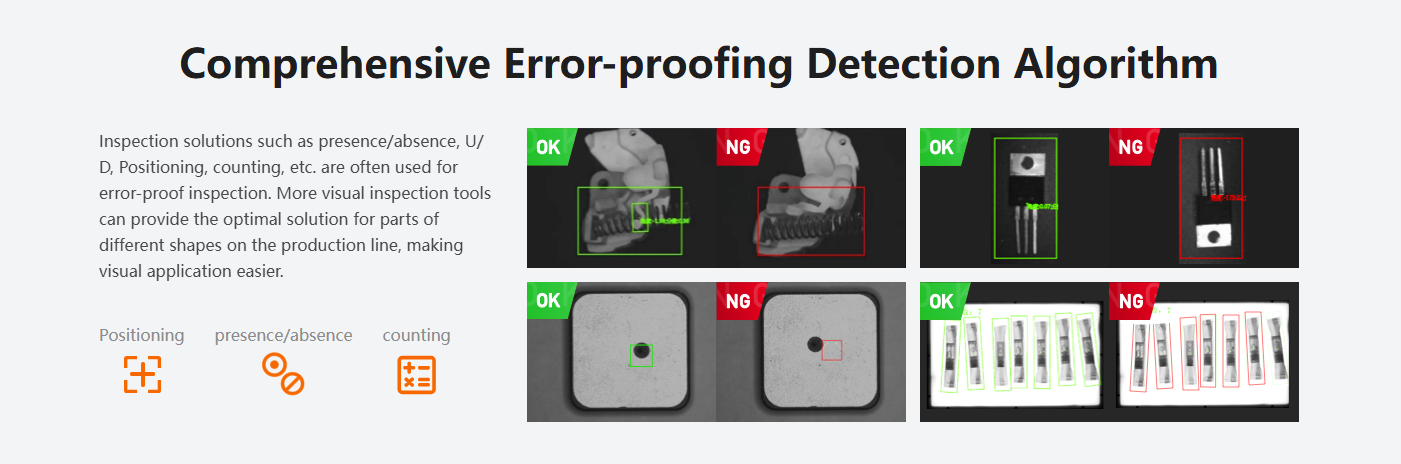

2. Incorporates high-precision positioning and measurement algorithms for counting, presence detection, and measurement functions.

3. Extensive I/O interfaces support multiple input/output signals.

4. Comprehensive status indicators provide real-time device status monitoring for convenient debugging and maintenance.

5. Ingenious lighting design ensures uniform brightness across the illumination area.

6. Supports multiple communication protocols including RS-232, TCP, UDP, FTP, Modbus, PROFINET, and EtherNet/IP.

Ordering Model

MV-SC2004EM-06S-WBN-Mini

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters




Detailed Parameters

Model	Model	MV-SC2004EM-06S-WBN-Mini
Model	Name	SC2000E Vision Sensor Mini Type, 6mm Lens, 400,000 Pixels, Black and White, Manual Focus
Tools	Vision Tools	Counting: spot counting, edge counting, pattern counting, contour counting; Presence/absence: square presence/absence, straight line presence/absence, spot presence/absence, edge presence/absence, pattern presence/absence, contour presence/absence; Positioning: position correction; Logic: condition judgment, logic judgment, character comparison, variable calculation; Measurement: line angle measurement, diameter measurement, brightness average measurement, contrast measurement, width measurement, point line measurement, gray area measurement, straight line angle measurement, pitch detection; Recognition: character recognition, registration and classification
	Solution Capability	Supports solution import/export, can store up to 8 solutions and 40 modules
	Communication Protocol	RS-232 、 TCP 、 UDP 、 FTP 、 PROFINET 、 Modbus 、 EtherNet/IP 、 FINS 、MELSEC/SLMP、Keyence kV
Camera	Sensor Type	CMOS, global shutter
	Pixel Size	6.9 μm × 6.9 μm
	Sensor Size	1/2.9"
	Resolution	704 × 540
	Maximum Acquisition Frame Rate	60 fps
	Dynamic Range	74 dB
	Signal - to - Noise Ratio	41 dB
	Gain	0 dB ~ 15 dB
	Exposure Time	16 μs~1 sec
	Pixel Format	Mono 8
	Black/Color	Black and white
Electrical Characteristics	Data Interface	Fast Ethernet(100Mbit/s)
	Digital I/O	17 - pin M12 interface provides power, Ethernet, digital I/O. The serial port function includes 1 non - isolated input (LINE1), 1 non - isolated output (LINE2), 2 bidirectional configurable non - isolated I/O (LINE0/1), 1 RS - 232, 1 external button input (BUTTON). The output signal only supports NPN type
	Power Supply	12 VDC ~ 24 VDC
	Maximum Power Consumption	11 W@24 VDC
Structure	Lens Interface	M10-mount, manual focus
	Focal Length	6.72 mm
	Lens Hood	Transparent lens hood
	Light Source	4 white LED lamp boards
	Indicators	Power indicator PWR, network indicator LNK, status indicator STS
	Dimensions	46 mm × 38 mm × 25 mm
	Weight	Approximately 160 g
	IP Protection Rating	IP65
	Temperature	Operating temperature 0 ~ 50°C; Storage temperature - 30 ~ 70°C
	Humidity	20%~95%，no condensation

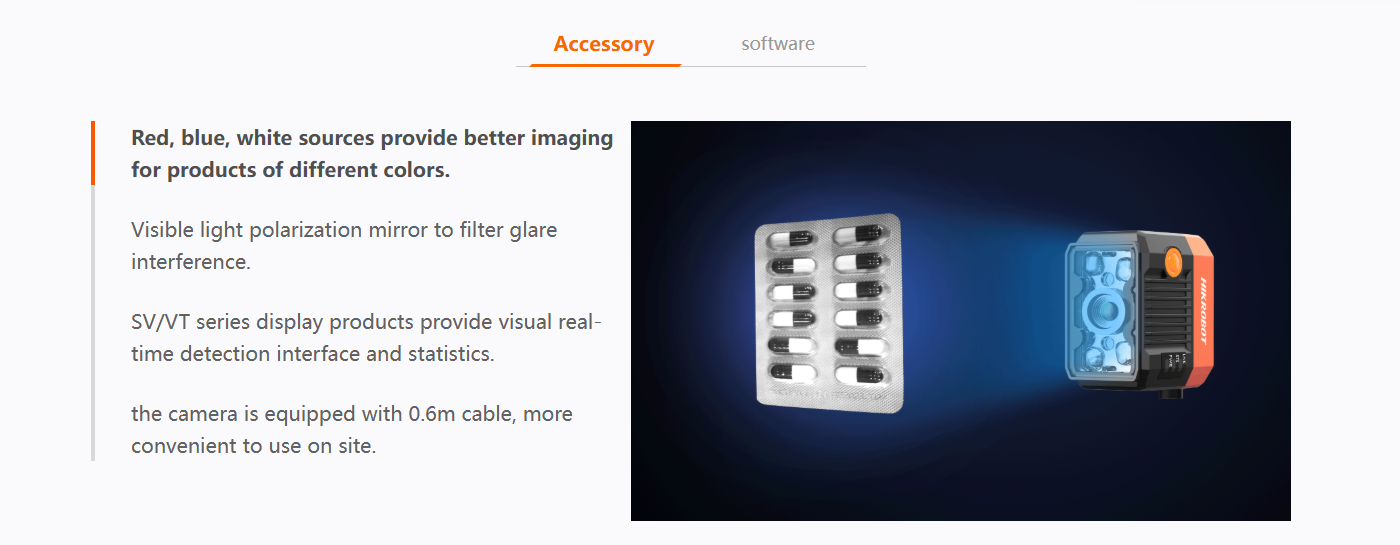

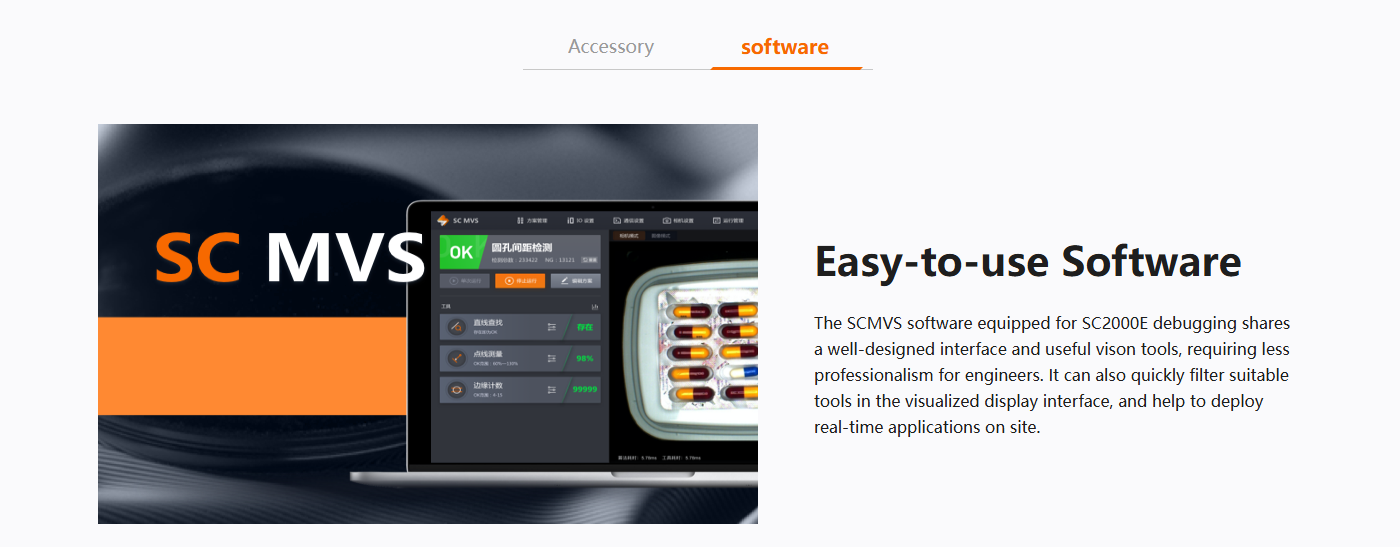

General Specifications	Software	SCMVS
General Specifications	Certification	CE,KC
