SC1000 Series Vision Sensors

Product Introduction

Functional Features

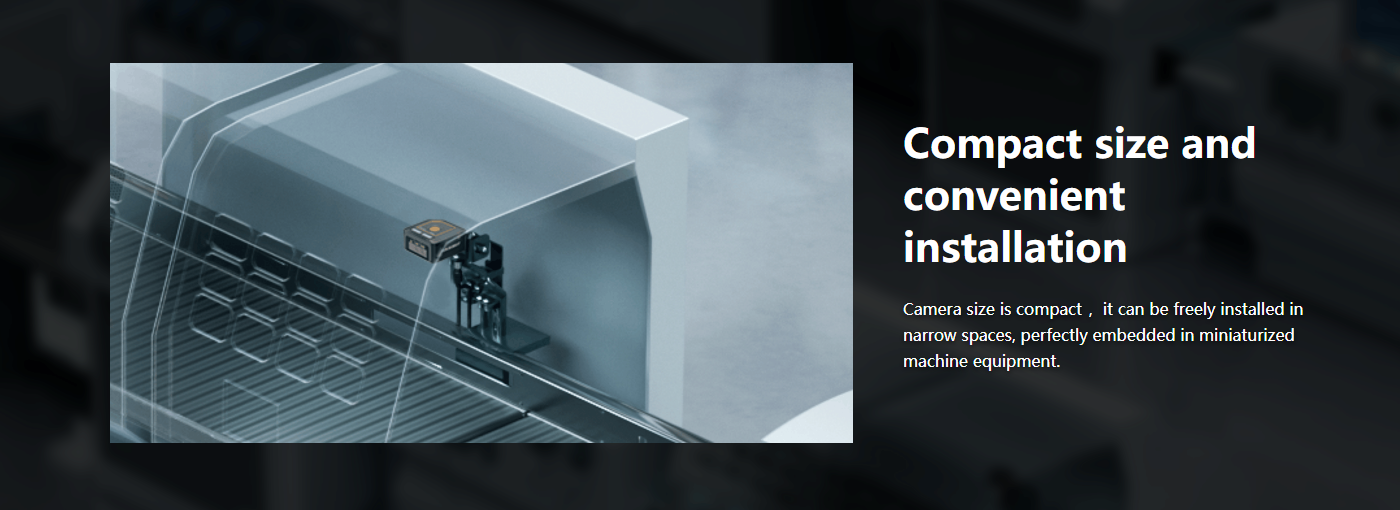

1. Ultra-compact size adapts to various machinery and tight workspaces.

2. Embedded hardware platform enables high-speed image processing.

3. Integrated high-precision positioning and measurement algorithms support counting, presence/absence detection, and measurement functions.

4. Built-in LED aiming system clearly indicates target field of view for quick installation and calibration.

5. Operational status indicator lights facilitate on-site debugging.

6. Supports multiple communication protocols including Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP, and serial interfaces.

Ordering Model

MV-SC1003M-03S-WBN-SR

*Product specifications may vary due to environmental factors. The company assumes no liability for any resulting consequences.

Product detailed parameters



Detailed Specifications

Model	Model	MV-SC1003M-03S-WBN-SR
Model	Name	SC1000 Vision Sensor, 3mm Lens, 300,000 Pixels, Black and White, Focal Distance 240mm
Tools	Vision Tools	Measurement: point measurement, contrast measurement, gray area measurement, pitch measurement, width measurement, brightness average measurement, line angle measurement, diameter measurement, straight line angle measurement; Presence/absence: spot presence/absence, edge presence/absence, contour presence/absence, square presence/absence, straight line presence/absence; Counting: spot counting, edge counting, contour counting; Recognition: registration and classification; Logic: variable calculation, logic judgment, condition judgment, combination judgment; Positioning: position correction.
	Solution Capability	Supports solution import/export, can store up to 8 solutions and 40 modules
	Communication Protocol	Modbus, EtherNet/IP, PROFINET, FTP, UDP, TCP Client, TCP Server, Serial Port, MELSEC/SLMP, FINS, Keyence kV
Camera	Sensor Type	CMOS, global shutter
	Pixel Size	3.74 μm × 3.74 μm
	Sensor Size	1/6"
	Resolution	640 × 480
	Maximum Acquisition Frame Rate	15 fps
	Dynamic Range	60 dB
	Signal - to - Noise Ratio	40 dB
	Gain	1 ~ 15 dB
	Exposure Time	60 μs ~ 7000 μs
	Pixel Format	Mono 8
	Black/Color	Black and white
Electrical Characteristics	Data Interface	Fast Ethernet(100Mbit/s)
	Digital I/O	Green terminal provides power, digital I/O. The serial port function includes 1 input (LINE0), 1 output (LINE1), 1 RS - 232. Supports triggering devices via top buttons
	Power Supply	12 ~ 24 VDC
	Typical Power Consumption	3 W@12 VDC
结构	Lens Interface	M5.5-mount
	Focal Length	3.1 mm
	Working Distance	240 mm
	Lens Hood	Transparent lens hood
	Light Source	White LED
	Aimer	Orange LED
	Indicators	Power indicator PWR, result display indicators OK/NG
	Dimensions	38 mm × 38 mm × 19 mm
	Weight	Approximately 40 g (excluding cable)
	IP Protection Rating	IP54
	Temperature	Operating temperature 0 ~ 50°C; Storage temperature - 30 ~ 70°C
	Humidity	20% ~ 95% RH, no condensation
General Specifications	Software	SCMVS
General Specifications	Certification	CE,KC
